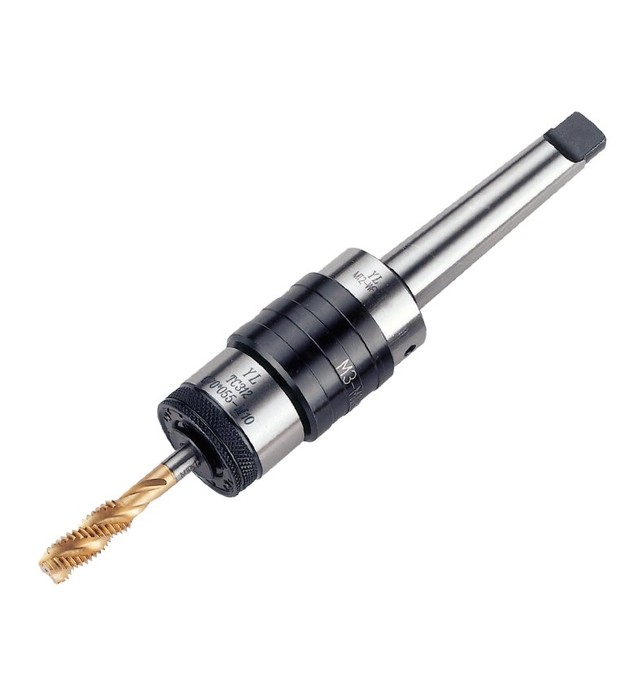

SF QUICK CHANGE TAPPING CHUCK MT
TYPE RIGID
SF QUICK CHANGE TAPPING CHUCK (TYPE RIGID)
Product Specs
| Part No. | Capacity | L | øD1 | øD2 | Collets | N.W.(g) |
|---|---|---|---|---|---|---|
| MT2-SF12 | M3~M14 | 34 | 19 | 34 | TC 312B／TC 312 | 265 |
| MT3-SF12 | M3~M14 | 34 | 19 | 34 | TC 312B／TC 312 | 405 |
| MT3-SF20 | M8~M24 | 54 | 31 | 50 | TC 820B／TC 820 | 780 |
| MT4-SF20 | M8~M24 | 54 | 31 | 50 | TC 820B／TC 820 | 1100 |
| MT3-SF33 | M14~M36 | 103 | 48 | 74 | TC 1433B／TC 1433 | 2655 |
| MT4-SF33 | M14~M36 | 103 | 48 | 74 | TC 1433B／TC 1433 | 3000 |
WF QUICK CHANGE TAPPING CHUCK MT

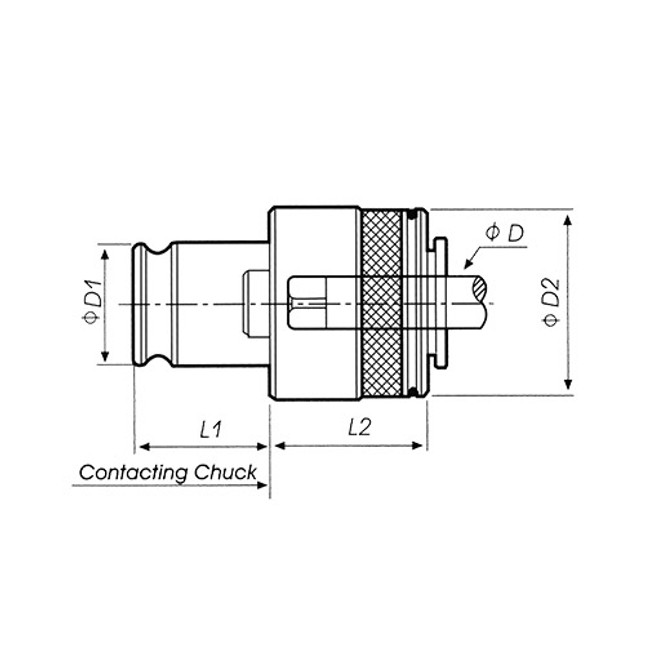

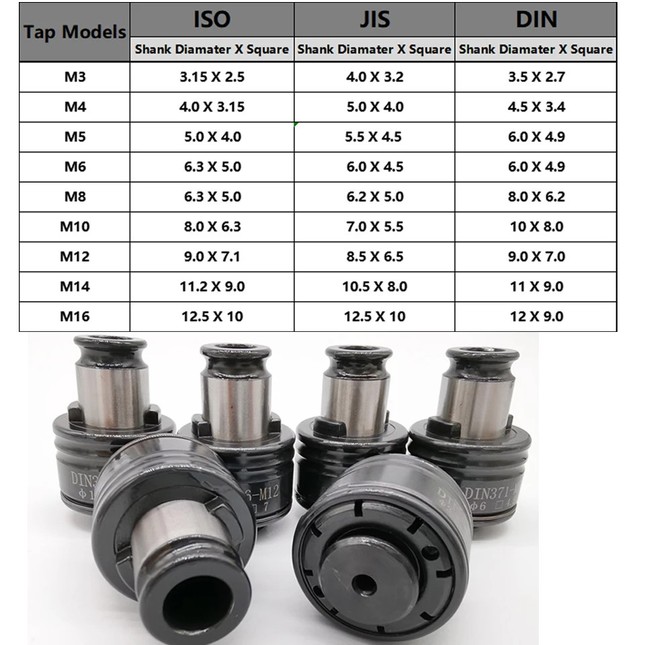

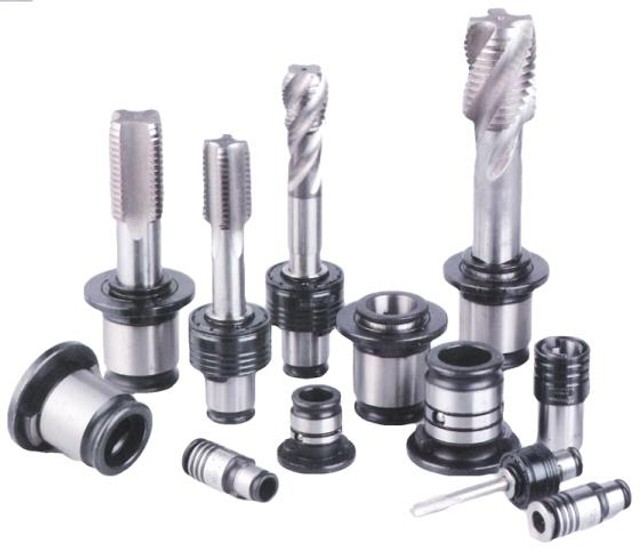

ตัวลูก Adapterที่จับดอกต๊าปเกลียว ต้องซื้อ ตามขนาดดอกต๊าปเกลียว
Product Specs
| Size (Model) | Tap Chuck Range | L1 | øD1 | øD2 | 伸縮長度 壓縮伸長 | Tap Adapter | Weight (g) | |
|---|---|---|---|---|---|---|---|---|
| MT2-WF12 | M3~M14 | 46 | 19 | 36 | 7.5 | 7.5 | TC 312 | 340 |
| MT3-WF12 | M3~M14 | 46 | 19 | 36 | 7.5 | 7.5 | TC 312 | 900 |
| MT3-WF20 | M8~M24 | 70 | 31 | 53 | 12.5 | 12.5 | TC 820 | 1200 |
| MT4-WF20 | M8~M24 | 77 | 31 | 53 | 12.5 | 12.5 | TC 820 | 1200 |
| MT4-WF33 | M14~M36 | 103 | 48 | 78 | 20 | 15 | TC 1433 | 2800 |
