Magnetic Drilling Machine เครื่องเจาะแม่เหล็ก

5E84E8C1-AB04-491B-ACDF-CD6FBABC73F6
S7110665

1775072
maxresdefault(2)
The revolving speed is changeable while operating. The gears are safe absolutely. The total maximum height is 570mm. Design of motor and gear box makes the point of gravity center become only 280mm. As the center of gravity is low and stable, the magnetic foundation can function well.
The distributor disc is located on the top of machine that can prevent it from falling and damaging.
MTM-930A & MTM-922A with variable six-step speed (max.Revolving speed:756, min. revolving speed:51) to select depends on the hardness of processed objects and size of hole that makes the work more convenient.

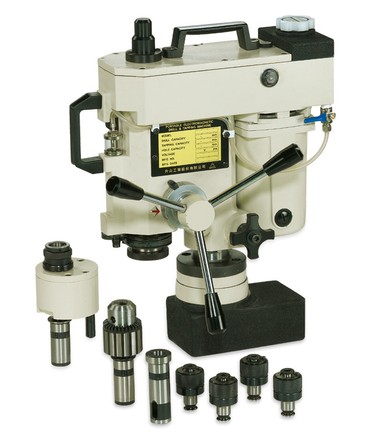

AE-22Sb
28010759512000124374735644187203677132499471n

Magnetic Drilling Machine เครื่องเจาะแม่เหล็ก

เครื่องเจาะสว่านฐานแม่เหล็ก,Magnetic-stand drilling machine,สว่านแท่นแม่เหล็กไฟฟ้า,MAGNETIC DRILLING & TAPPING

PORTABLE MAGNETIC DRILLING & TAPPING MACHINE
MTM-922A

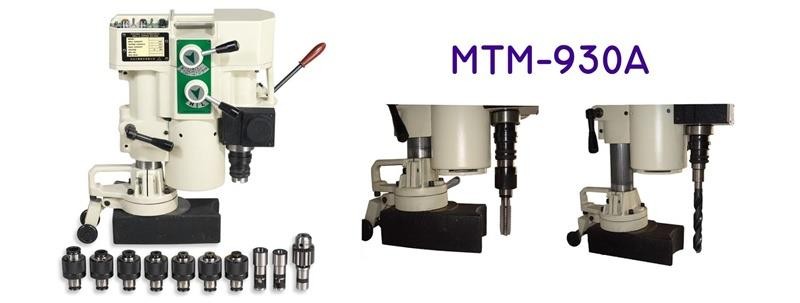

MTM-930A
MTM940
The revolving speed is changeable during the machine is being operated. The gears are safe absolutely.
The total maximum height is 570m/m. Design of motor and gear box makes the point of gravity center become only 280m/m. As the center of gravity is quite low and hard to be fallen, the magnetic foundation can attain its function and efficiency.
The distributor disc is located on the top of machine which prevent it from being fallen or destroyed. MTM-930A & MTM-922A with six-step speed variable (max. revolving speed: 756min revolving speed-51) depends on the hardness of processed objects and size of hole which makes the operator more comfortable to select the revolving speed. MAGNETIC DRILLING AND TAPPING MACHINE
MAGNETIC DRILLING AND TAPPING MACHINE

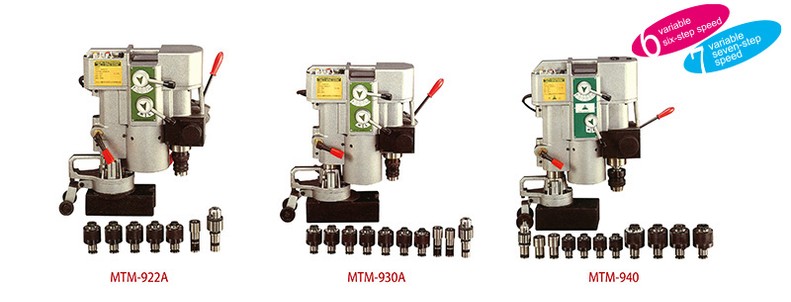

enmtm922a

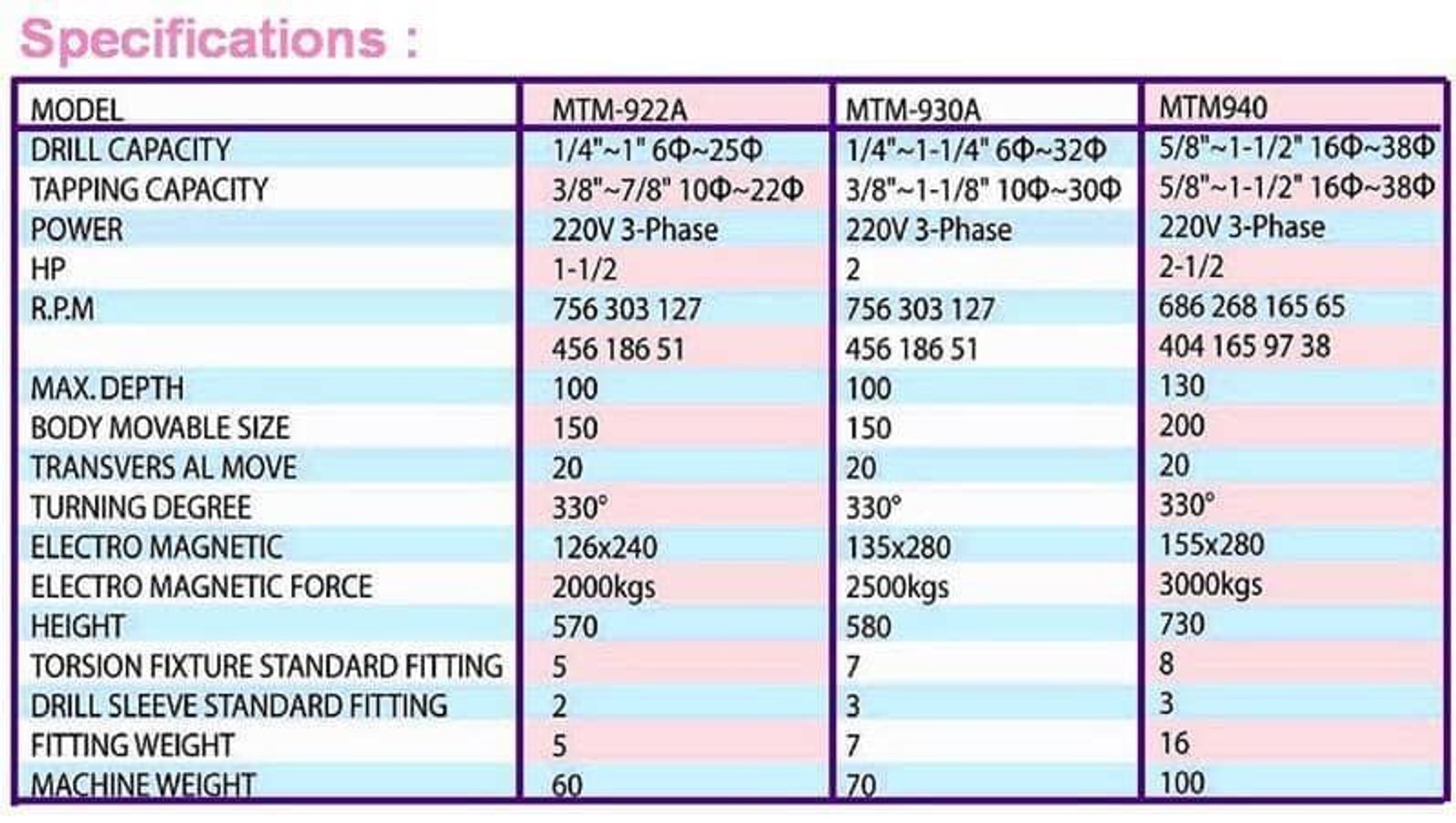

ModelMTM-922AMTM-930AMTM-940
Drilling Capacity(mm)6-226-3216-38
Tapping CapacityM10~M22M10~M30M16~M38
Power(V)220
3-PH		220
3-PH		220
3-PH
HP1.522.5
R.P.M756  456
303  186
127  51		756  456
303  186
127  51		686  404
268  165
165  97
65    38
Max.Depth(mm)100100130
Body Stroke(mm)150150200
Transversal Move(mm)202020
Tuming Angle330°330°330°
Magnetic(mm)126x240135x280155x280
Max.Electro Magnetic Force2000kg2500kg3000kg
Height(mm)570580730
Torsion Fixture Standard Fitting(pcs)578
Drill Sleeve Standard Fitting(pcs)233
Machine Weight(kg)6070100
