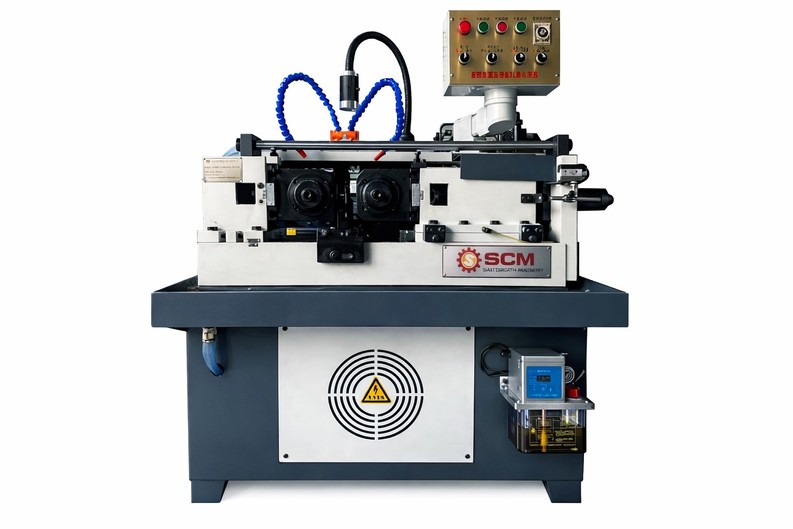

Model:NRS-6.3T

Max,diameter

M3~M20

pitch：

0.5~2.5mm

length

70mm

Machine table to roll die center height

125mm

Bore Diameter

54mm

key way

12x5mm

Rolling dies Max.diameter

150mm

Rolling dies Width range

30~70mm

Maximum pressure per unit area of the cylinde

120KG/Square centimeter

Max.rolling pressure

6300KG

Gear oil pump flow

5 liters per minute

spindle speed

50 RPM

Main power

3KW 1430 RPM

Hydraulic power

1.5kw 1450 RPM

Cooling water pump

40 watts 2900 RPM

Over dimensions.(LxWxH)m/m

1200x1000*1400mm

Net neight

1000kgs
