Product Description

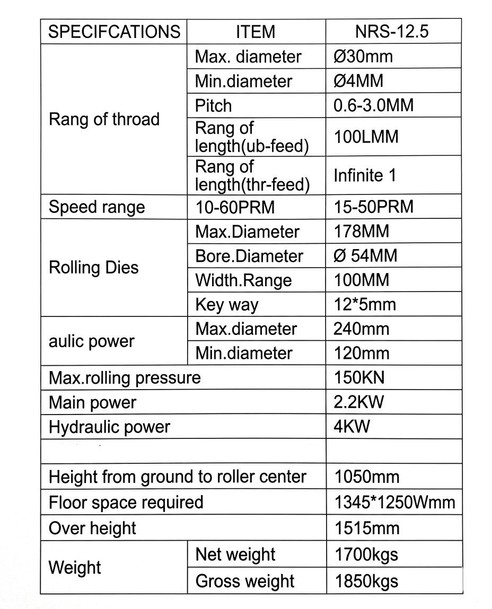

SPECIFCATIONS | ITEM | NRS-12.5 |
Rang of throad | Max. diameter | Ø30mm |
Min.diameter | Ø4MM | |
Pitch | 0.6-3.0MM | |
Rang of 1ength(ub-feed) | 100LMM | |
Rang of length(thr-feed) | Infinite 1 | |
Speed range | 10-60PRM | 15-50PRM |
Rolling Dies | Max.Diameter | 178MM |
Bore.Diameter | Ø 54MM | |
Width.Range | 100MM | |
Key way | 12*5mm | |
aulic power | Max.diameter | 240mm |
Min.diameter | 120mm | |
Max.rolling pressure | 150KN | |
Main power | 2.2KW | |
Hydraulic power | 4KW | |
c11lant power | ||
Height from ground to roller center mm | 1050mm | |
Floor space required | 1345*1250Wmm | |
Over height | 1515mm | |
Weight | Net weight | 1700kgs |
Gross weight | 1850kgs | |
