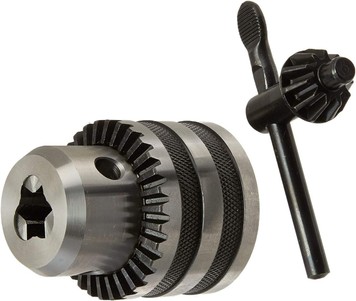

KEY TYPE DRILL CHUCK
หัวจำปาขันสว่าน
Product Specs
| Description /Code No. | Size | Capacity mminch | Taper Mount No. DIN or Jacobs | Length (mm) OpenClosed | Outer Dia. (mm) | Weight (g) | ||
|---|---|---|---|---|---|---|---|---|
| 11303-1 | 10HTP | 0.3-10 | 1/64-3/8 | JT2S | 54 | 68 | 45 | 380 |
| 11304-2 | 13HTP | 0.3-13 | 1/64-1/2 | JT6 | 68.5 | 81 | 52.5 | 620 |
| 11305-1 | 16HTP | 0.3-16 | 1/64-5/8 | JT6 | 78 | 100 | 59 | 950 |
| 11305-2 | 16HTP | 0.3-16 | 1/64-5/8 | JT3 | 78 | 100 | 59 | 950 |
| 11306-2 | 19HTP | 3-19 | 1/8-3/4 | JT4 | 95 | 120 | 73 | 2130 |
Key Type Drill Chuck Run Out Table
| Size | ed (mm) | L (mm) | Max Runout |
|---|---|---|---|
| 10 mm | 10 | 40 | 0.15 |
| 12 mm | 12 | 48 | 0.15 |
| 16 mm | 15 | 60 | 0.15 |
| 18 mm | 18 | 72 | 0.15 |
