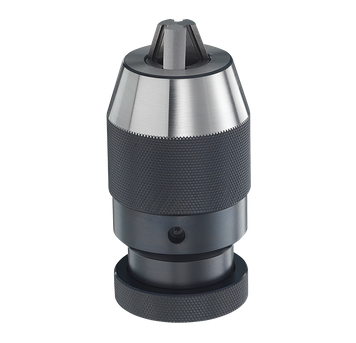

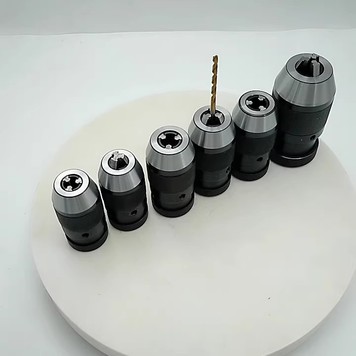

KEYLESS DRILL CHUCK H-TYPE
หัวจำปาจับดอกสว่านและดอกต๊าปเกลียว
Industrial design especially for milling machines and drilling machines.
All hardened parts ensure long life and safety while in operation.
Product Specs
| Description /Code No. | Size | Capacity mminch | Taper Mount No. DIN or Jacobs | Length (mm) AB | D (mm) | Weight (g) | ||
|---|---|---|---|---|---|---|---|---|
| 12301-1 | 6H | 0.3-6 | 1/64-1/4 | JT1 | 63 | 69 | 34 | 310 |
| 12302-1 | 8H | 0.3-8 | 1/64-5/16 | JT1 | 68 | 76 | 38 | 395 |
| 12302-2 | 8H | 0.3-8 | 1/64-5/16 | B10 | 68 | 76 | 38 | 395 |
| 12303-2 | 10H | 0.3-10 | 1/64-3/8 | JT2 | 80 | 92 | 43 | 610 |
| 12303-4 | 10H | 0.3-10 | 1/64-3/8 | B12 | 80 | 92 | 43 | 610 |
| 12304-4 | 13H | 0.3-13 | 1/64-1/2 | B16 | 90 | 102 | 49 | 920 |
| 12304-5 | 13H | 0.3-13 | 1/64-1/2 | JT6 | 90 | 102 | 49 | 920 |
| 12304-1 | 16H | 3-16 | 1/8-5/8 | JT6 | 97 | 110 | 55 | 1200 |
| 12304-2 | 16H | 3-16 | 1/8-5/8 | JT3 | 97 | 110 | 55 | 1200 |
| 12305-3 | 16H | 3-16 | 1/8-5/8 | B16 | 97 | 110 | 55 | 1200 |
| 12305-4 | 16H | 3-16 | 1/8-5/8 | B18 | 97 | 110 | 55 | 1200 |
Keyless Drill Chuck Run Out Table
| Type | ∮d (mm) | L (mm) | S Type ↗ | H Type ↗ |
|---|---|---|---|---|
| 3S | 1.5 | 30 | 0.05 | 0.07 |
| 3 | ||||
| 6S | 3 | 35 | 0.05 | 0.07 |
| 4 | ||||
| 6 | ||||
| 8S | 4 | 35 | 0.05 | 0.07 |
| 6 | ||||
| 8 | 50 | |||
| 10S | 5 | 35 | 0.05 | 0.07 |
| 6 | ||||
| 10 | 58 | |||
| 13S | 6 | 55 | 0.05 | 0.07 |
| 10 | ||||
| 13 | 75 | |||
| 16S | 6 | 55 | 0.05 | 0.07 |
| 10 | ||||
| 16 | 80 |
