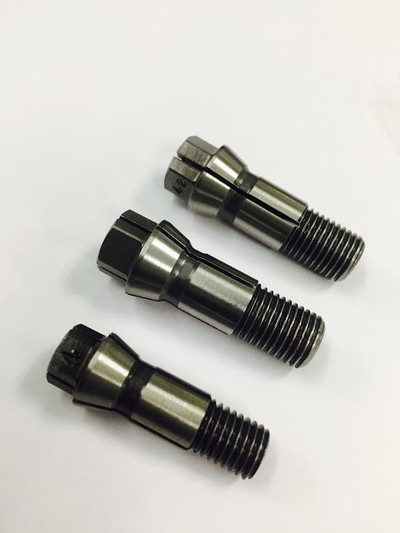

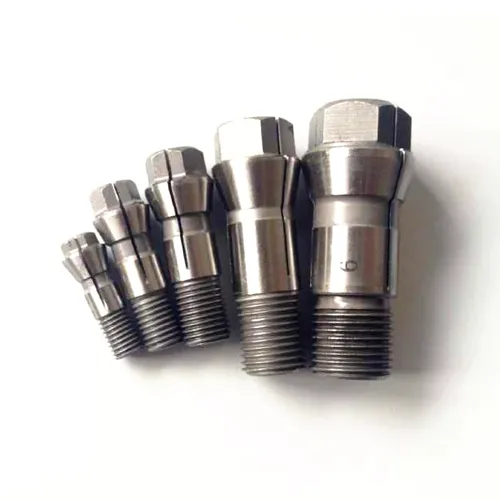

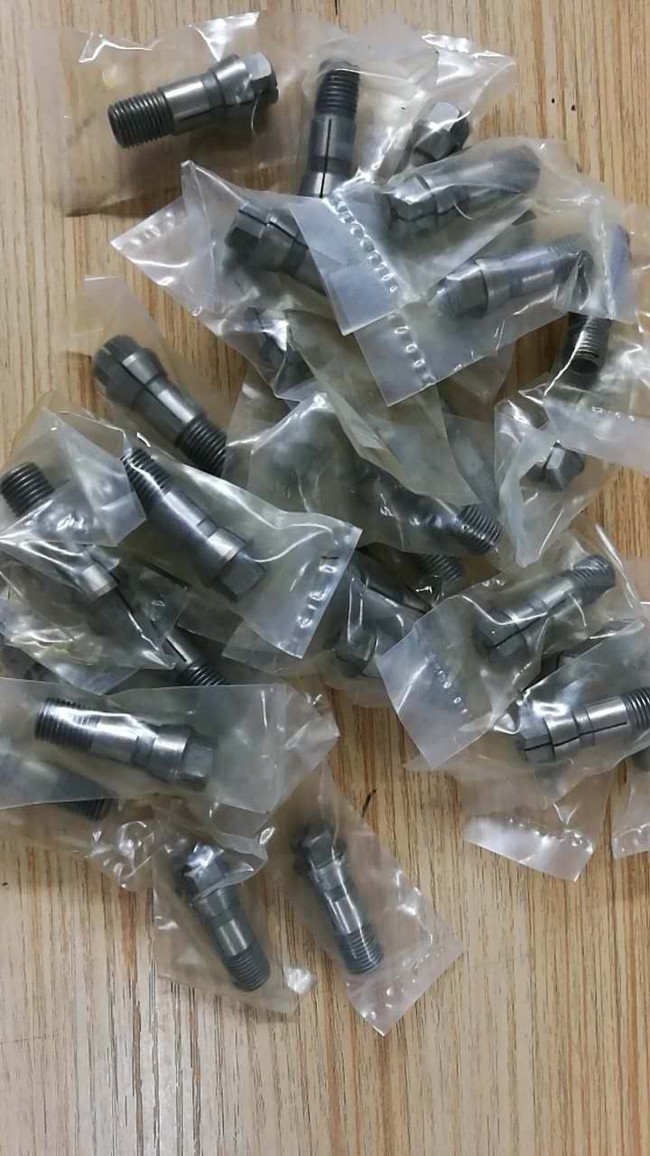

Collet Tap

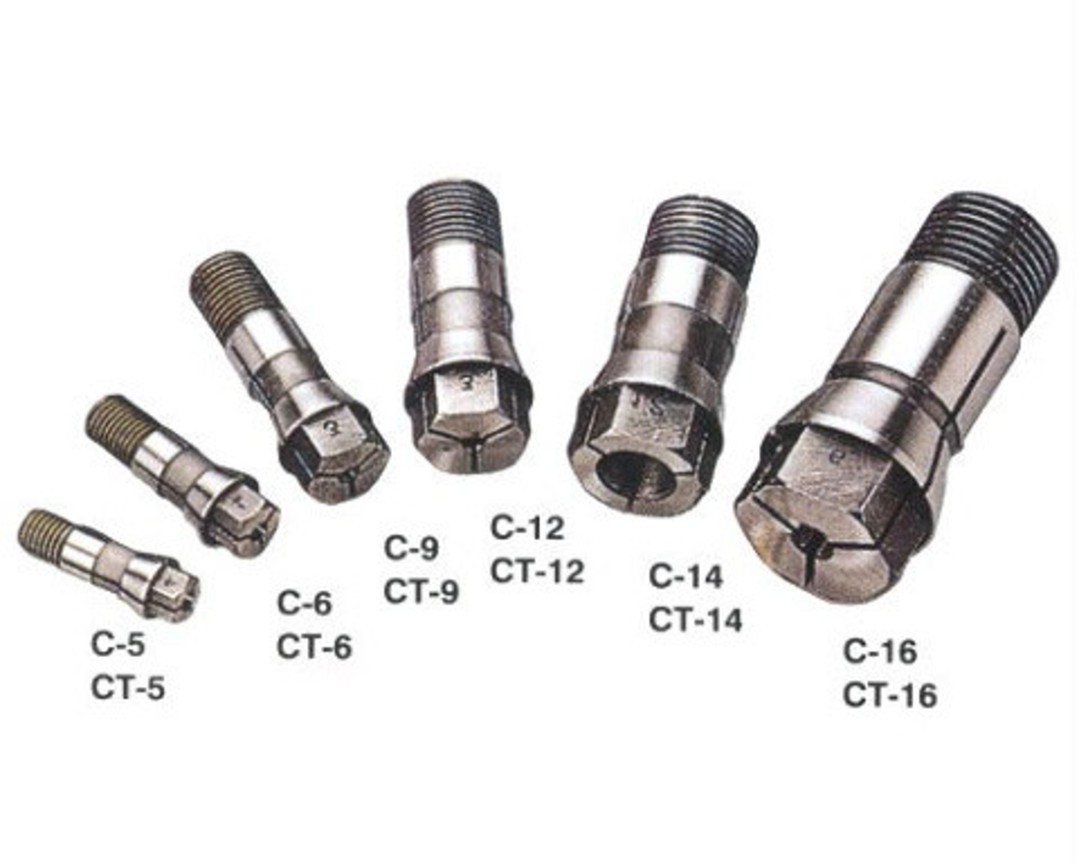

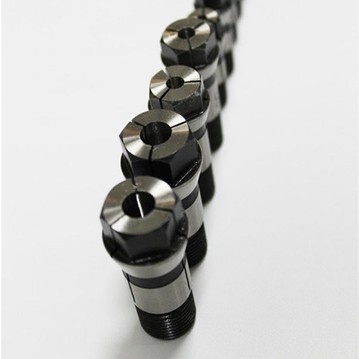

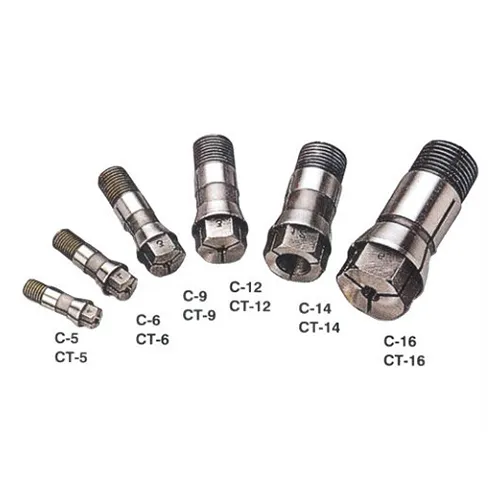

Collet C-5,C-6,C-9,C-12,C-14,C-16 (CT-5,CT-6,CT-9,CT-12,CT-14,CT-16)
คอเล็ทจับดอกต๊าปใช้กับหัวเจาะต๊าปหลายหัว

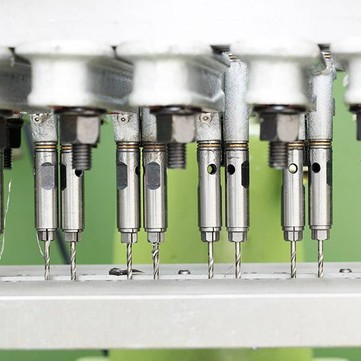

Multi-axis-collet-series

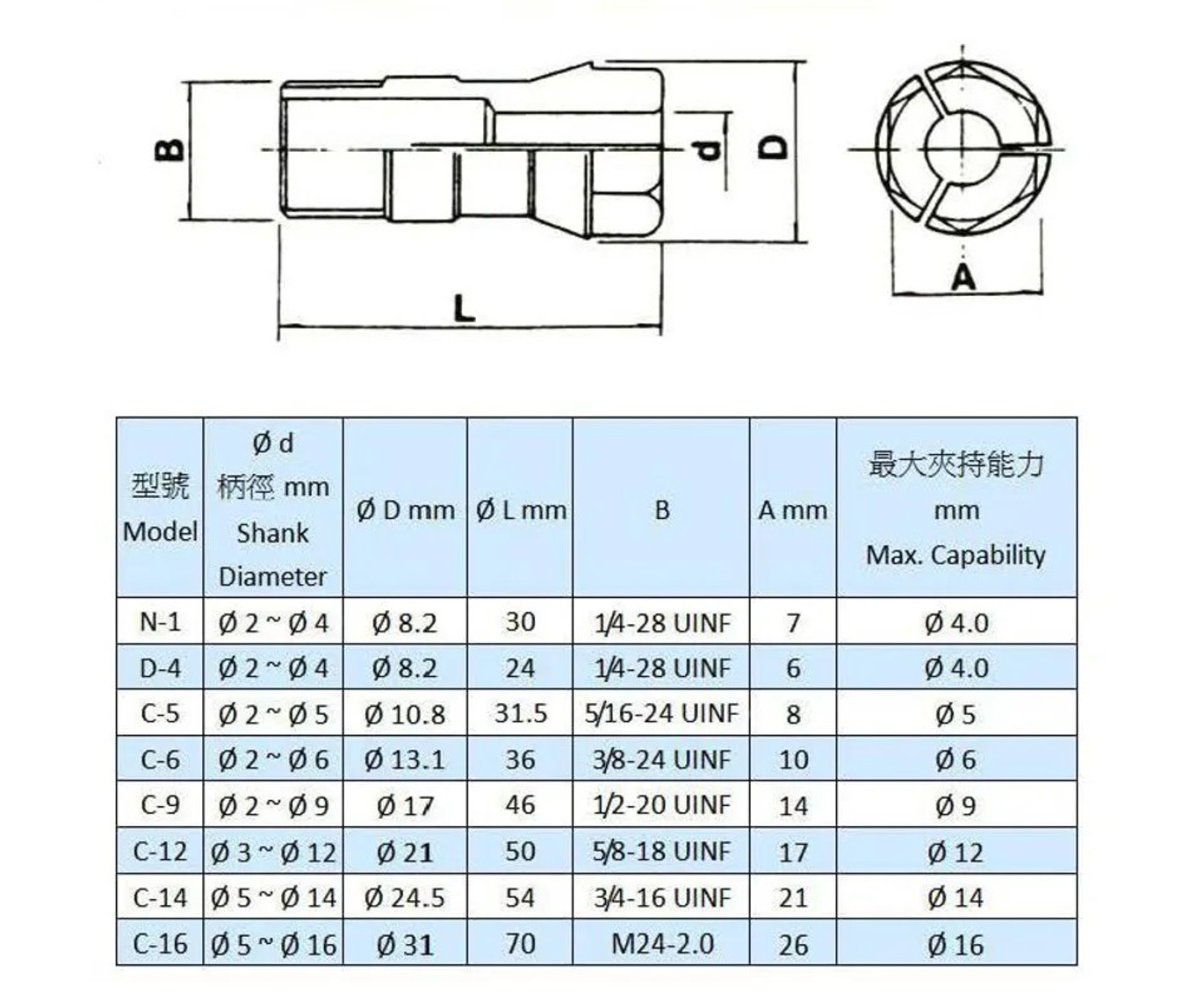

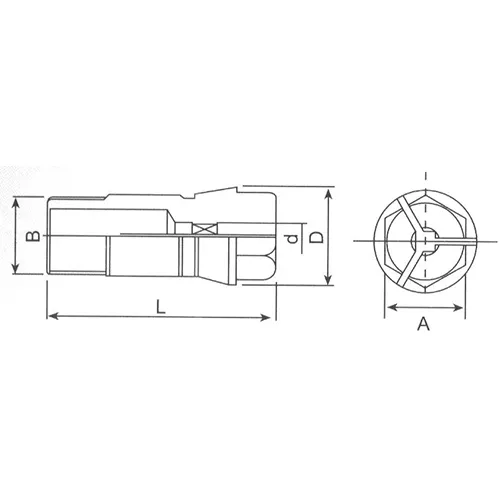

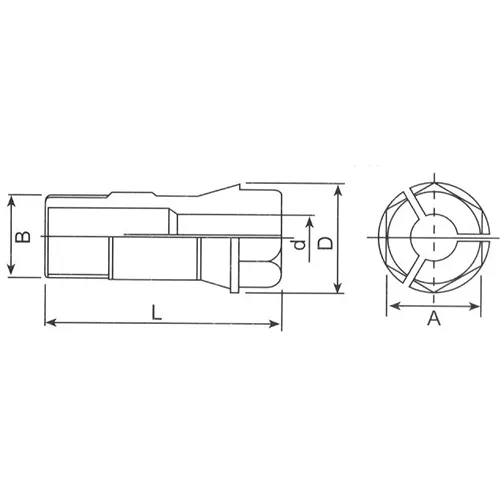

| Model | Ød | ØD | L | B | A | Max.capacity |
|---|---|---|---|---|---|---|
| CT-5 | 3 - 5 | 10.8 | 31.5 | 5/16 - 24 | 8 | M4x0.7 |
| CT-6 | 3 - 6 | 13.1 | 36 | 3/8 - 24 | 10 | M6x1.0 |
| CT-9 | 3 - 7 | 17.0 | 46 | 1/2 - 20 | 14 | M8x1.25 |
| CT-12 | 3 - 9 | 21.0 | 50 | 5/8 - 18 | 17 | M12x1.75 |
