จำหน่ายเครื่องกลึงจำปามือโยก Bench Lathe/ จำหน่ายจำปา Pull Collet

S6946850

S6946851

S6946852

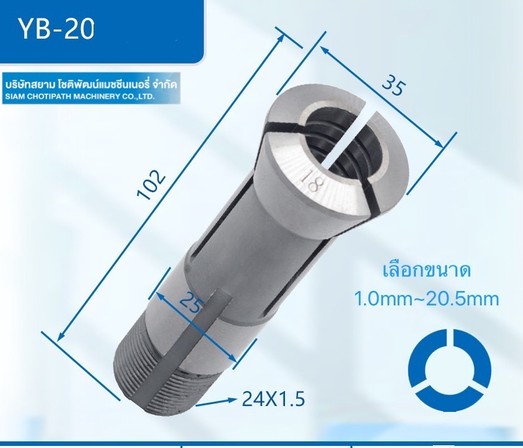

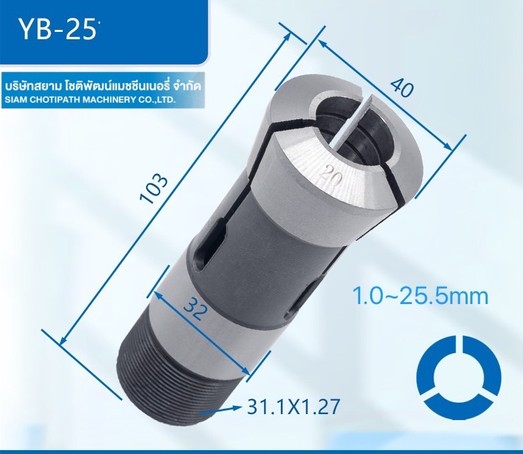

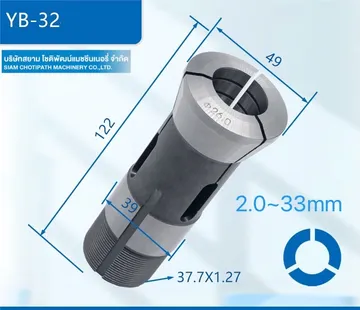

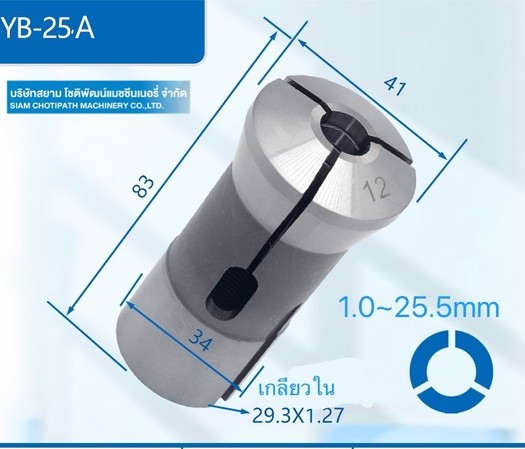

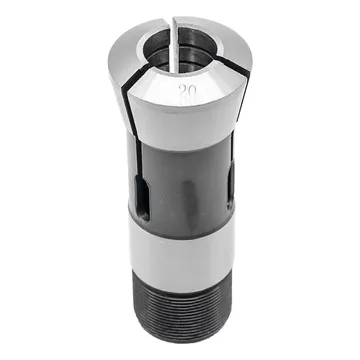

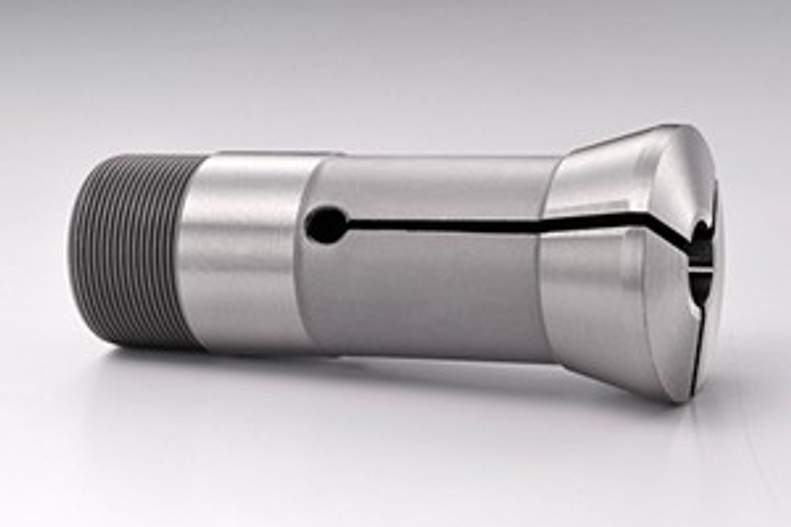

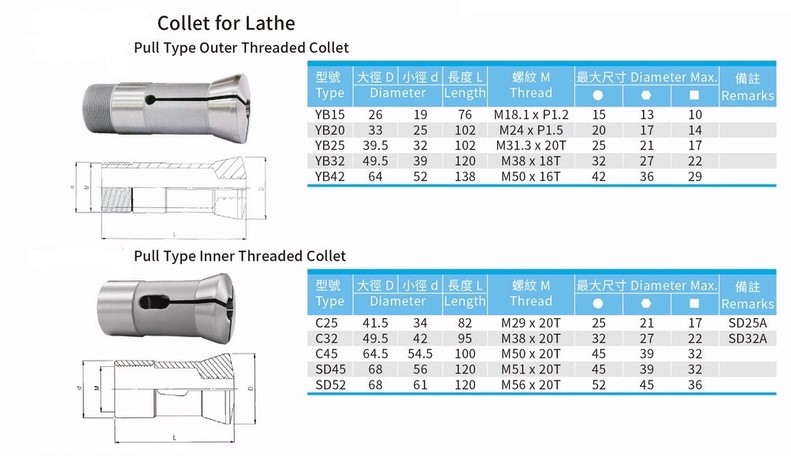

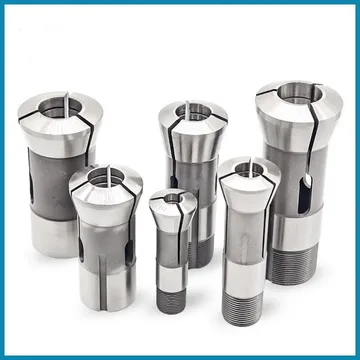

Collet for Bench Lathe

จำปาจับชิ้นงานเครื่องกลึงมือโยก

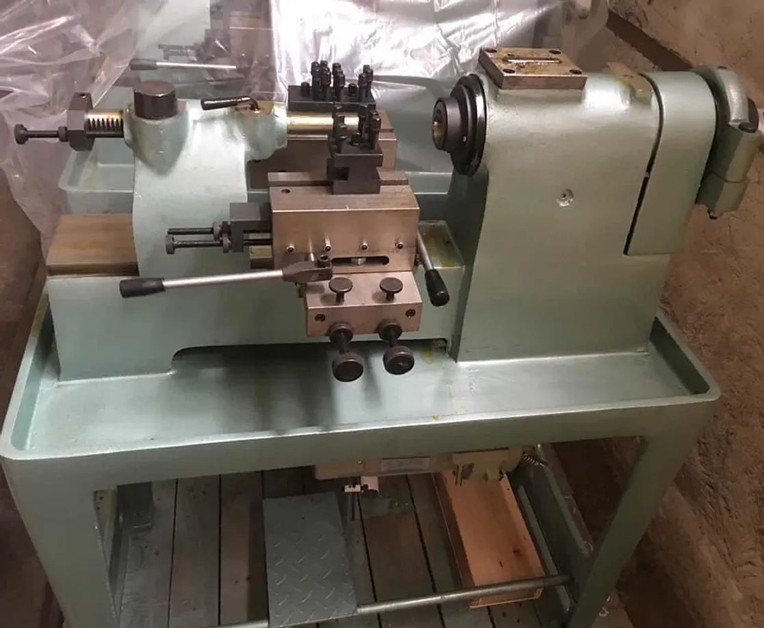

จำหน่ายเครื่องกลึงมือโยก รุ่น SD-15,SD-25, SD-32, SD45, SD-52

บริษัท สยาม โชติพัฒน์ แมชชีนเนอรี่ จำกัด
(Thailand)

13/20 หมู่ 10 ตำบลบางปลา
อำเภอบางพลี สมุทรปราการ 10540

Tel : 021752487-8
Fax : 021752489
Email : rollingdie@gmail.com

ติดตามข่าวสาร

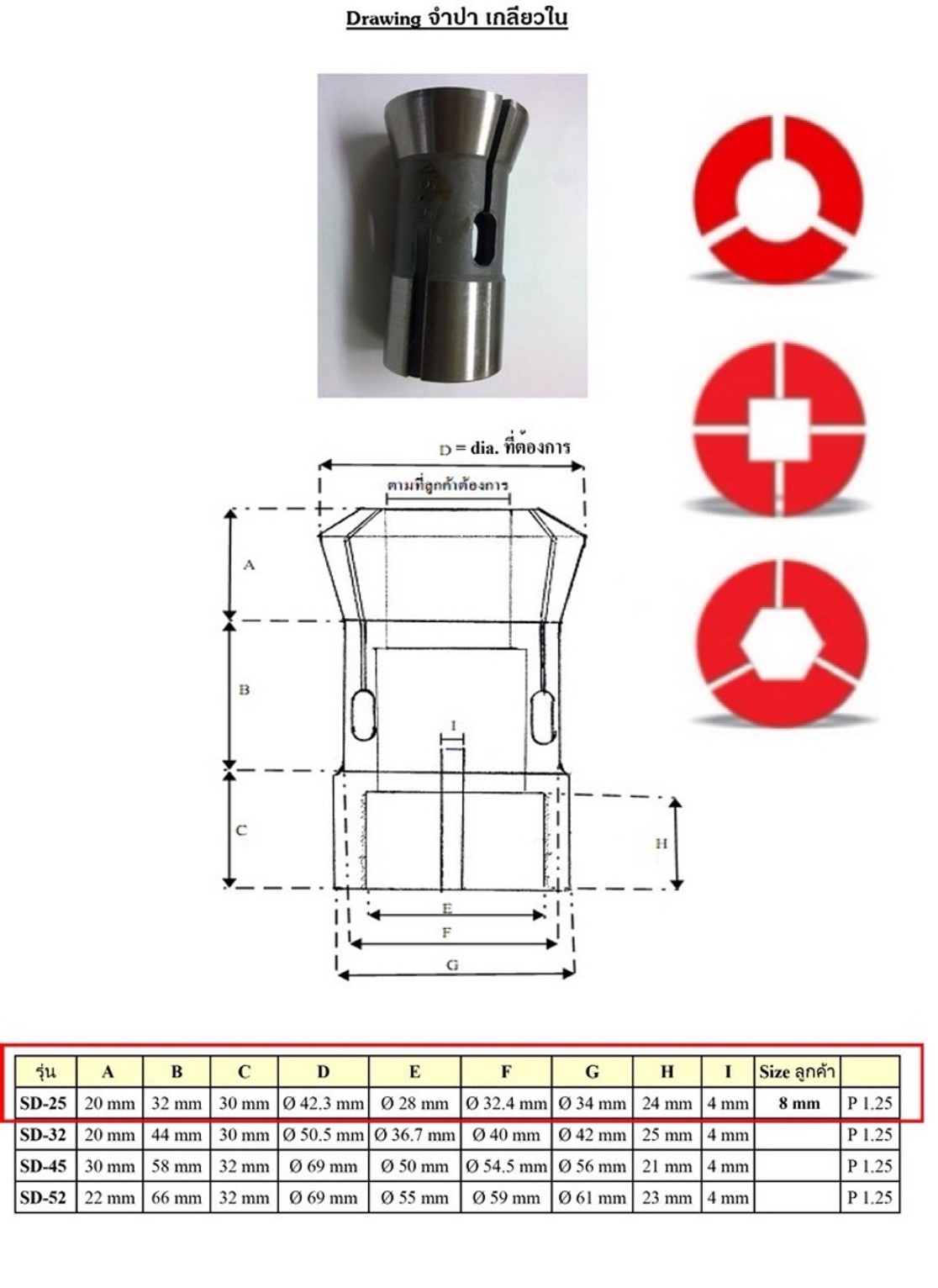

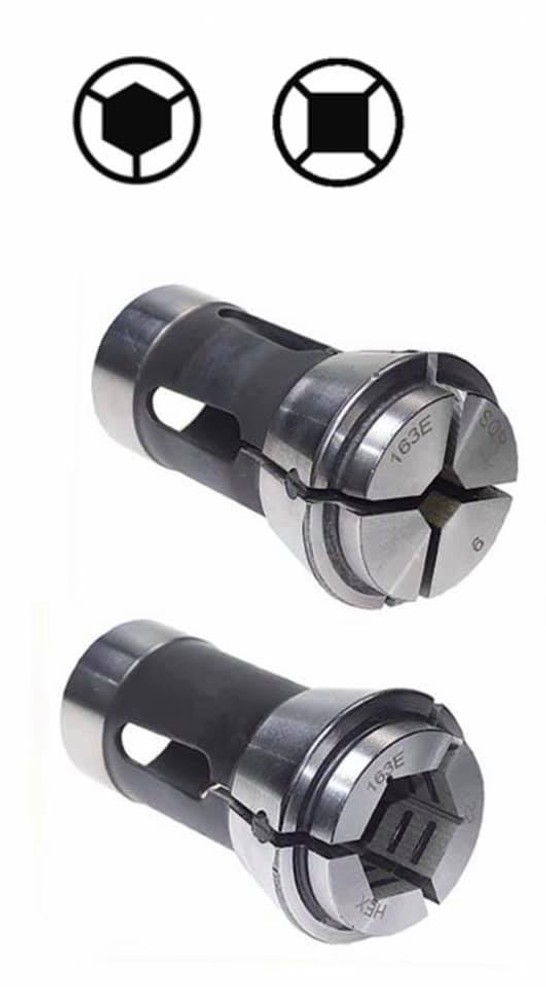

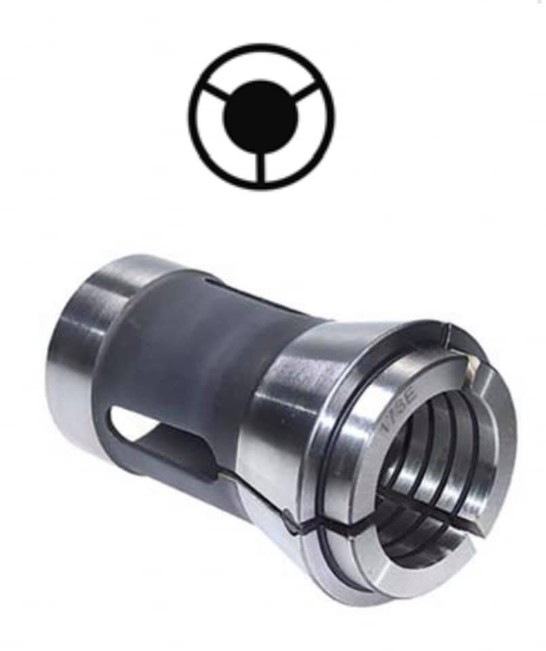

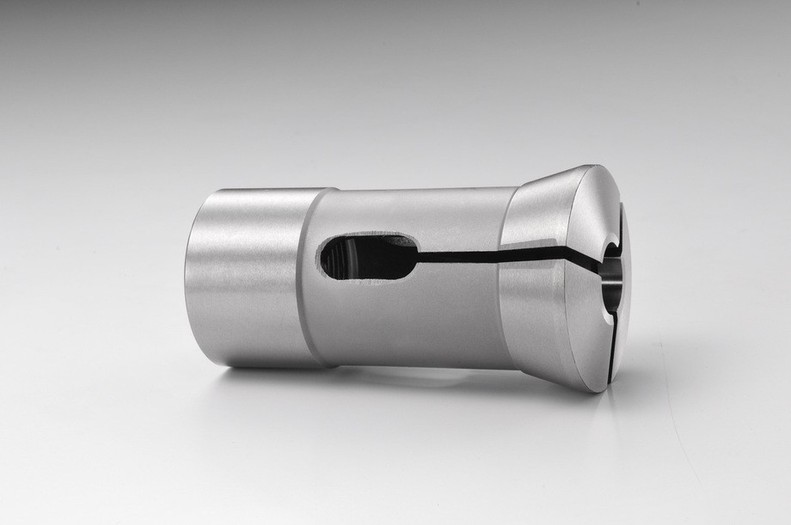

จำปาจับชิ้นงานเครื่องกลึงมือโยก

S10035547

2069007389976876277060478587001304758268953n

S4169853

S10035547

2069007389976876277060478587001304758268953n

SD-52

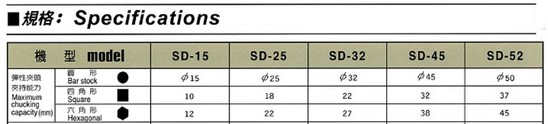

MAXIMUM CHUCKING CAPACITY.
BAR STOCK :50mm.
SQUARE : 37mm.
HEXAGONAL : 45mm.
Turning length up to 100mm.
2 HP motor.

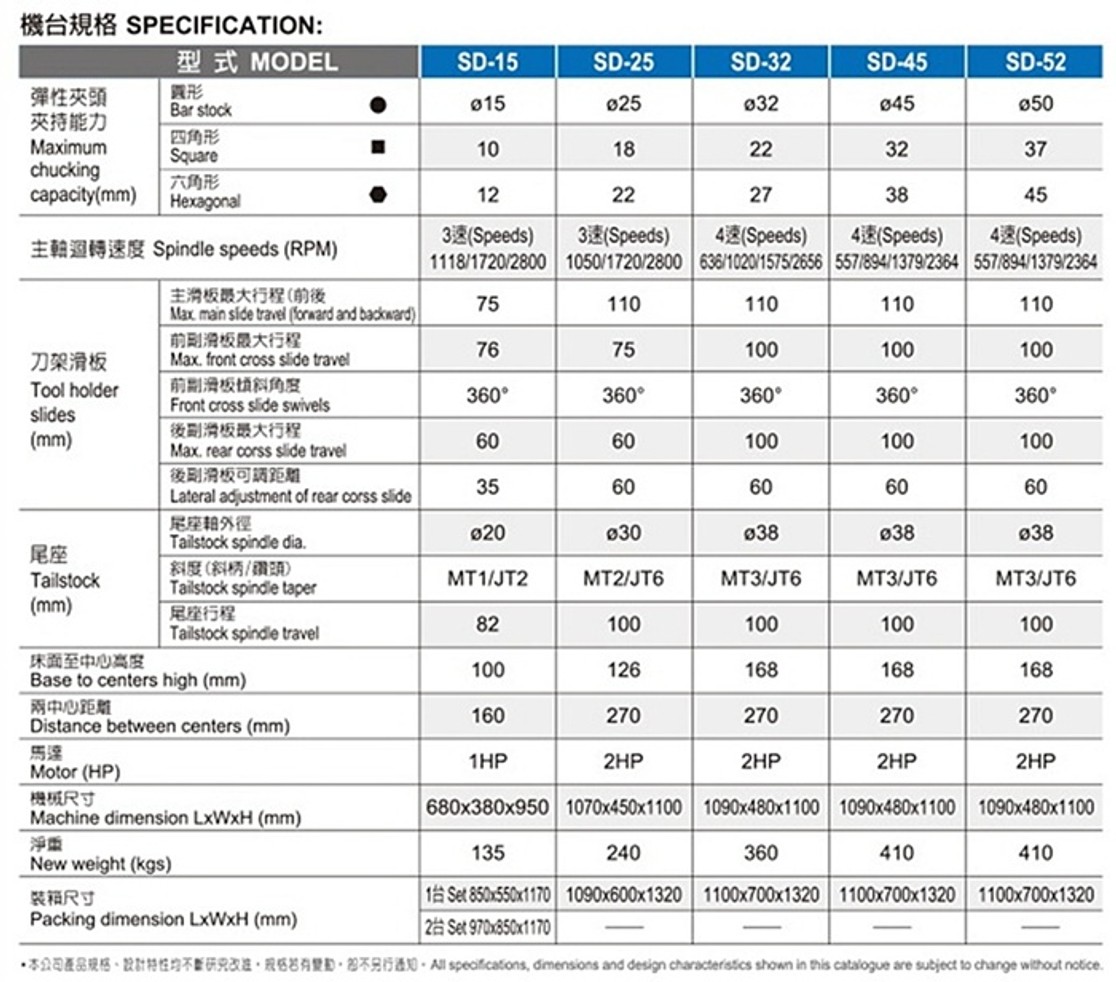

Model Specification:		SD-52
Max. chucking capacity (mm)	Bar Stock	ψ50
	Square	37
	Hexagonal	45
Spindle speeds (RPM)		4 Speeds
Spindle speeds (RPM)		557/894/1379/2364
Tool holder slides (mm)	Max. main slide travel (forward and backward)	110
	Max. front cross slide travel	100
	Front cross slide swivels	360°
	Max. rear corss slide travel	100
	Lateral adjustment of rear corss slide	60
Tailstock (mm)	Tailstock spindle dia.	ψ38
	Tailstock spindle taper	MT3/JT6
	Tailstock spindle travel	100
Base to centers high (mm)		168
Distance between centers (mm)		270
Motor (HP)		2HP
Machine dimension LWH (mm)		10904801100
New weight (kgs)		410
Packing dimension LWH (mm)		11007001320

SD-45

MAXIMUM CHUCKING CAPACITY.
BAR STOCK :45mm.
SQUARE : 32mm.
HEXAGONAL : 38mm.
Turning length up to 100mm.
2 HP motor.

Model Specification:		SD-45
Max. chucking capacity (mm)	Bar Stock	ψ45
	Square	32
	Hexagonal	38
Spindle speeds (RPM)		4 Speeds
Spindle speeds (RPM)		557/894/1379/2364
Tool holder slides (mm)	Max. main slide travel (forward and backward)	110
	Max. front cross slide travel	100
	Front cross slide swivels	360°
	Max. rear corss slide travel	100
	Lateral adjustment of rear corss slide	60
Tailstock (mm)	Tailstock spindle dia.	ψ38
	Tailstock spindle taper	MT3/JT6
	Tailstock spindle travel	100
Base to centers high (mm)		168
Distance between centers (mm)		270
Motor (HP)		2HP
Machine dimension LWH (mm)		10904801100
New weight (kgs)		410
Packing dimension LWH (mm)		11007001320

S4309061

SD-15

MAXIMUM CHUCKING CAPACITY.
BAR STOCK : 15mm.
SQUARE : 10mm.
HEXAGONAL : 12mm.
Turning length up to 70mm.
1 HP motor .

Model Specification:		SD-15
Max. chucking capacity (mm)	Bar Stock	ψ15
	Square	10
	Hexagonal	12
Spindle speeds (RPM)		3 Speeds
Spindle speeds (RPM)		1118/1720/2800
Tool holder slides (mm)	Max. main slide travel (forward and backward)	75
	Max. front cross slide travel	76
	Front cross slide swivels	360°
	Max. rear corss slide travel	60
	Lateral adjustment of rear corss slide	35
Tailstock (mm)	Tailstock spindle dia.	ψ20
	Tailstock spindle taper	MT1/JT2
	Tailstock spindle travel	82
Base to centers high (mm)		100
Distance between centers (mm)		160
Motor (HP)		1HP
Machine dimension LWH (mm)		680380950
New weight (kgs)		135
Packing dimension LWH (mm)		1 Set 8505501170
Packing dimension LWH (mm)		2 Set 9708501170

SD-32A/B

MAXIMUM CHUCKING CAPACITY.
BAR STOCK :32mm.
SQUARE : 22mm.
HEXAGONAL : 27mm.
Turning length up to 100mm.
2 HP motor.

Model Specification:		SD-32A/B
Max. chucking capacity (mm)	Bar Stock	ψ32
	Square	22
	Hexagonal	27
Spindle speeds (RPM)		4 Speeds
Spindle speeds (RPM)		636/1020/1575/2656
Tool holder slides (mm)	Max. main slide travel (forward and backward)	110
	Max. front cross slide travel	100
	Front cross slide swivels	360°
	Max. rear corss slide travel	100
	Lateral adjustment of rear corss slide	60
Tailstock (mm)	Tailstock spindle dia.	ψ38
	Tailstock spindle taper	MT3/JT6
	Tailstock spindle travel	100
Base to centers high (mm)		168
Distance between centers (mm)		270
Motor (HP)		2HP
Machine dimension LWH (mm)		10904801100
New weight (kgs)		360
Packing dimension LWH (mm)		11007001320

S4309061

SD-25A/B

MAXIMUM CHUCKING CAPACITY.
BAR STOCK : 25mm.
SQUARE : 18mm.
HEXAGONAL : 22mm.
Turning length up to 80mm.
2 HP motor .

Model Specification:		SD-25A/B
Max. chucking capacity (mm)	Bar Stock	ψ25
	Square	18
	Hexagonal	22
Spindle speeds (RPM)		3 Speeds
Spindle speeds (RPM)		1050/1720/2800
Tool holder slides (mm)	Max. main slide travel (forward and backward)	110
	Max. front cross slide travel	75
	Front cross slide swivels	360°
	Max. rear corss slide travel	60
	Lateral adjustment of rear corss slide	60
Tailstock (mm)	Tailstock spindle dia.	ψ30
	Tailstock spindle taper	MT2/JT6
	Tailstock spindle travel	100
Base to centers high (mm)		126
Distance between centers (mm)		270
Motor (HP)		2HP
Machine dimension LWH (mm)		10704501100
New weight (kgs)		240
Packing dimension LWH (mm)		1096001320

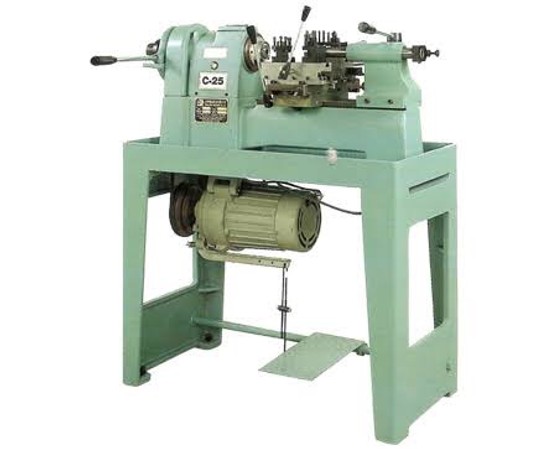

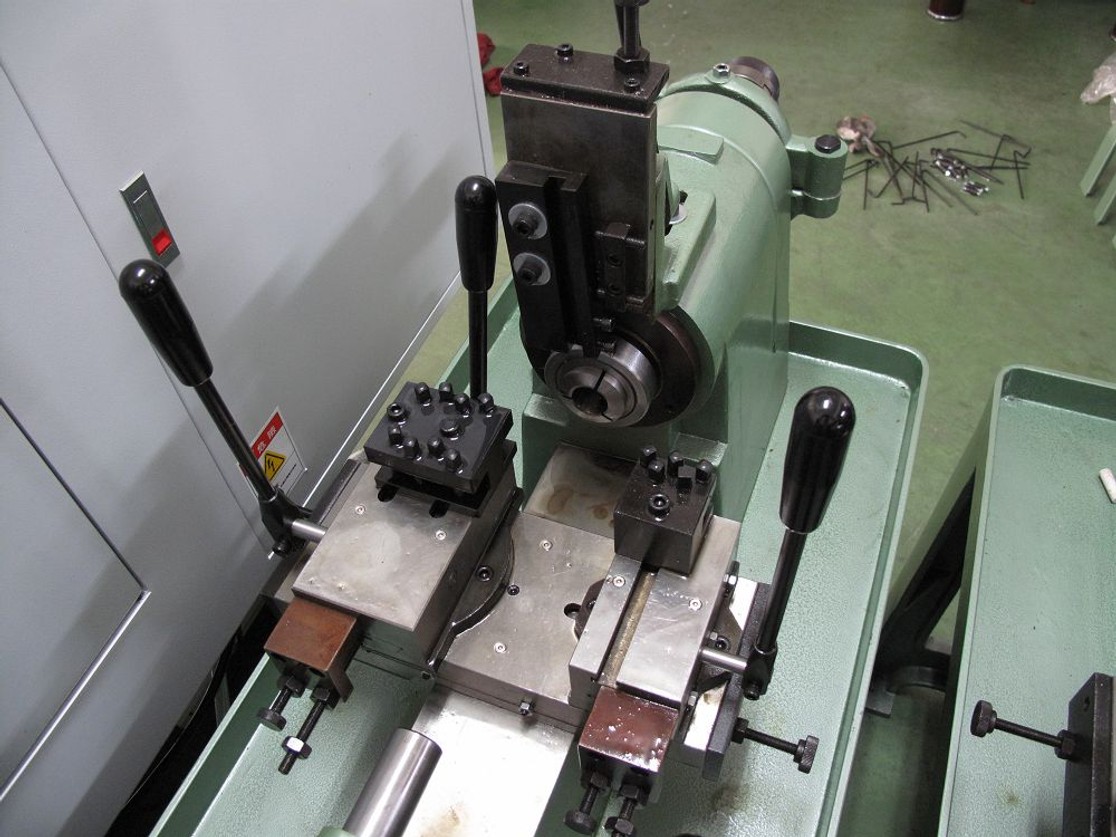

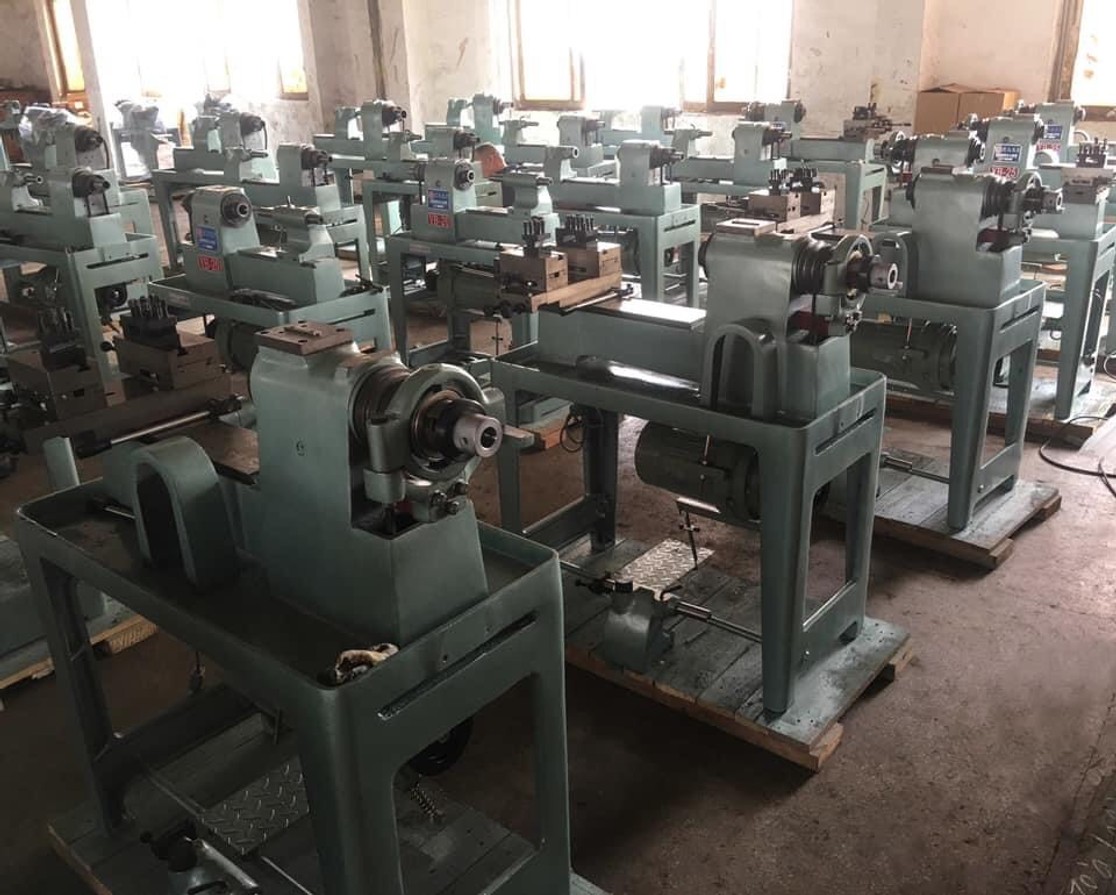

Bench Lathe
SD-15

Bench Lathe
SD-25A/B

Bench Lathe
SD-32A/B

Bench Lathe
SD-45

Bench Lathe
SD-52

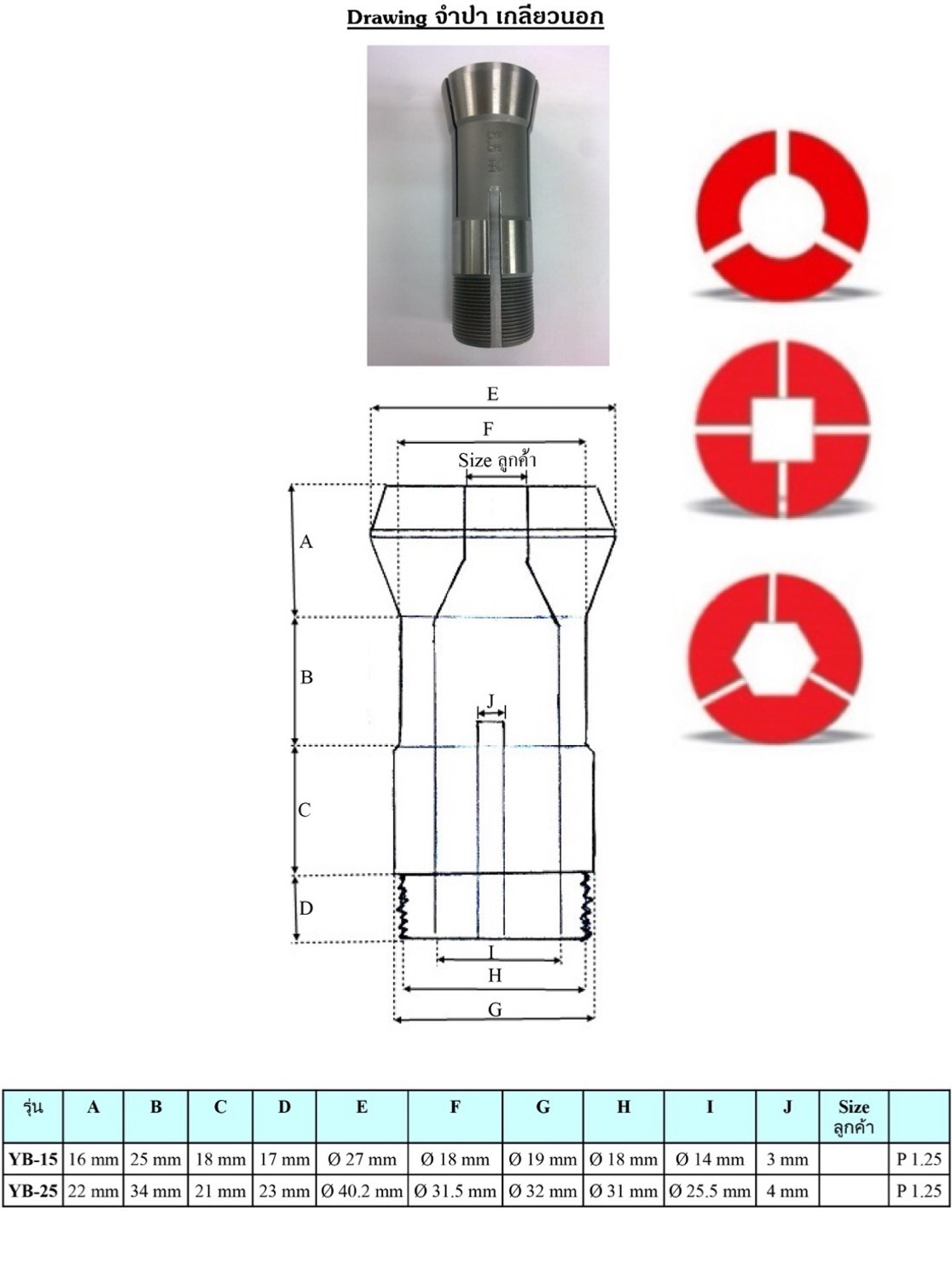

ครื่องกลึงจำปา เครื่องกลึงมือโยก หัวจำปาเกลียวใน หัวจำปาเกลียวนอก Collet Chuck SD-15 SD-25 SD-32 SD45 SD-52 YB-15 YB-25

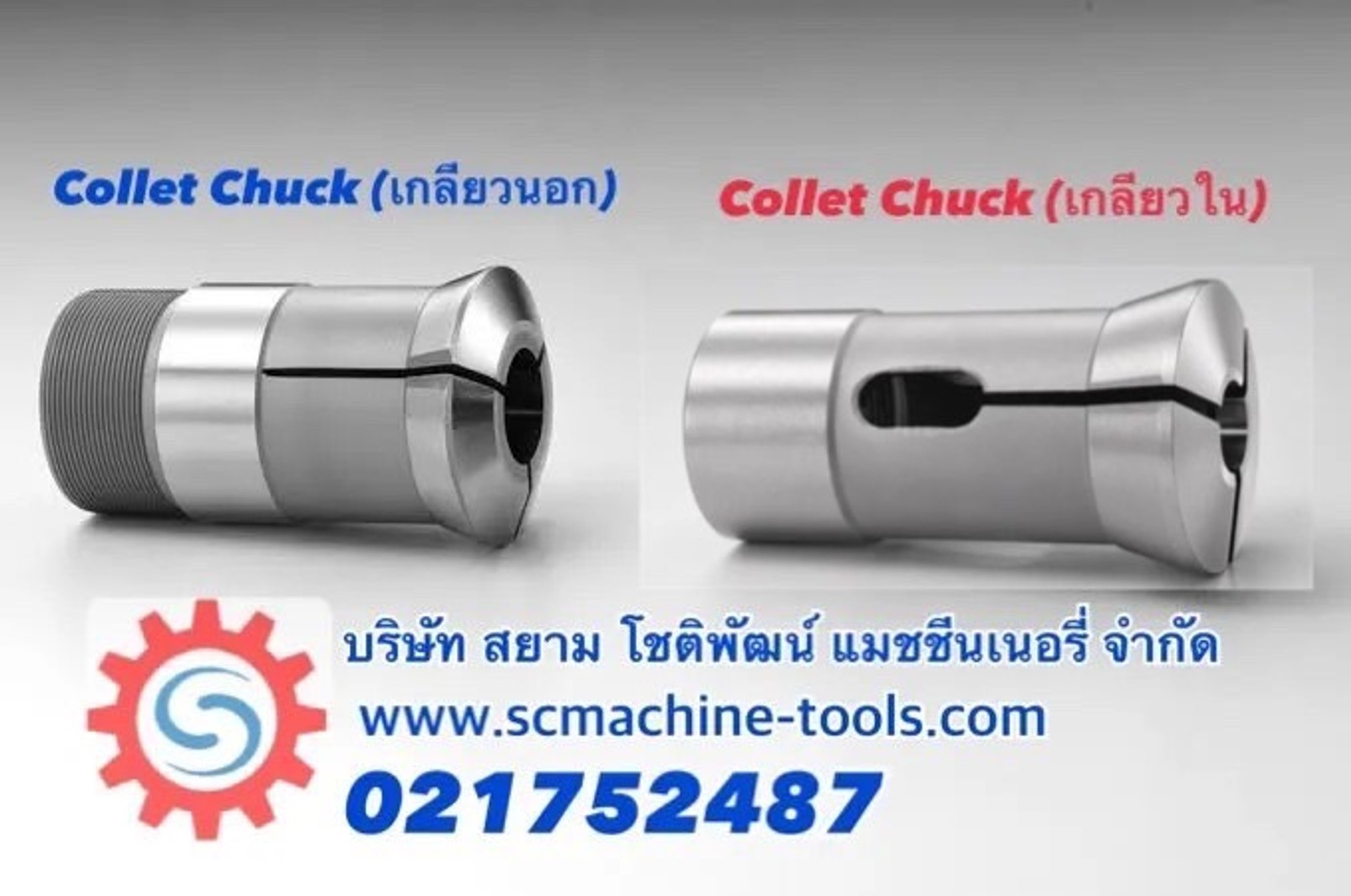

เครื่องกลึงจำปา เครื่องกลึงมือโยก หัวจำปาเกลียวใน หัวจำปาเกลียวนอก Collet Chuck

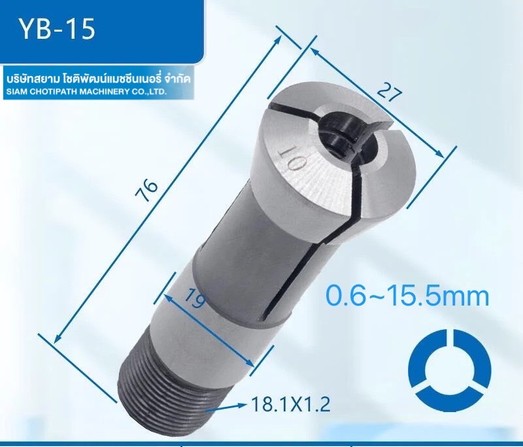

SD-15 SD-25 SD-32 SD45 SD-52 YB-15 YB-25

SD-25A/B

BENCH LATHE MACHINE COLLET CHUCK

SD-25P SD-32A,SD-45,SD-52
